SPECIFICATIONS
Overview
Interface
SD 3.0 / UHS-I
Flash Technology
pSLC
Capacity
4GB～64GB
Form Factor
SD Card
Dimensions
32.0 x 24.0 x 2.1 mm
Performance
Seq. Performance Read (max.)
81 MB/s
Seq. Performance Write (max.)
46 MB/s
Random 4K Read (IOPS max.)
10,000
MTBF
>3,000,000 hrs
P/E Cycle
30,000
Operating Environment
Operating Temperature
-40°C～85°C / -25°C～85°C
Storage Temperature
-40°C～85°C
Operating Humidity
10%～95% (30°C Max. Wet Bulb Temp)
Vibration
20G, 10～2000Hz
Drop
150cm
Shock
1,500G@0.5ms
Power Consumption
Power Requirement
DC 3.3V
Power Consumption (max.)
300 mA
Power Consumption (idle)
300 uA
Key Features
AES-256
●
Write Protect
●
TCG Opal 2.0
◎
Warranty
Warranty
5 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 4GB | -25 ~ 85℃ | SP004GISDI535NE0 |
| 8GB | -25 ~ 85℃ | SP008GISDI535NE0 |
| 16GB | -25 ~ 85℃ | SP016GISDI535NE0 |

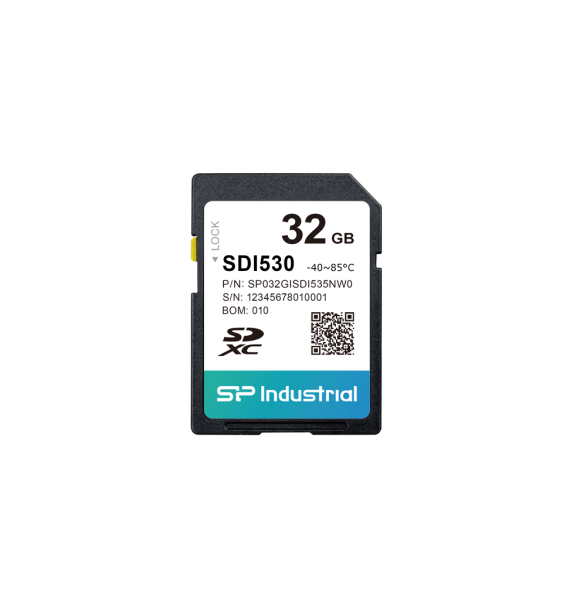

| 32GB | -25 ~ 85℃ | SP032GISDI535NE0 |
| 4GB | -40 ~ 85℃ | SP004GISDI535NW0 |
| 8GB | -40 ~ 85℃ | SP008GISDI535NW0 |
| 16GB | -40 ~ 85℃ | SP016GISDI535NW0 |
| 32GB | -40 ~ 85℃ | SP032GISDI535NW0 |
